Mionsonraí an Táirge

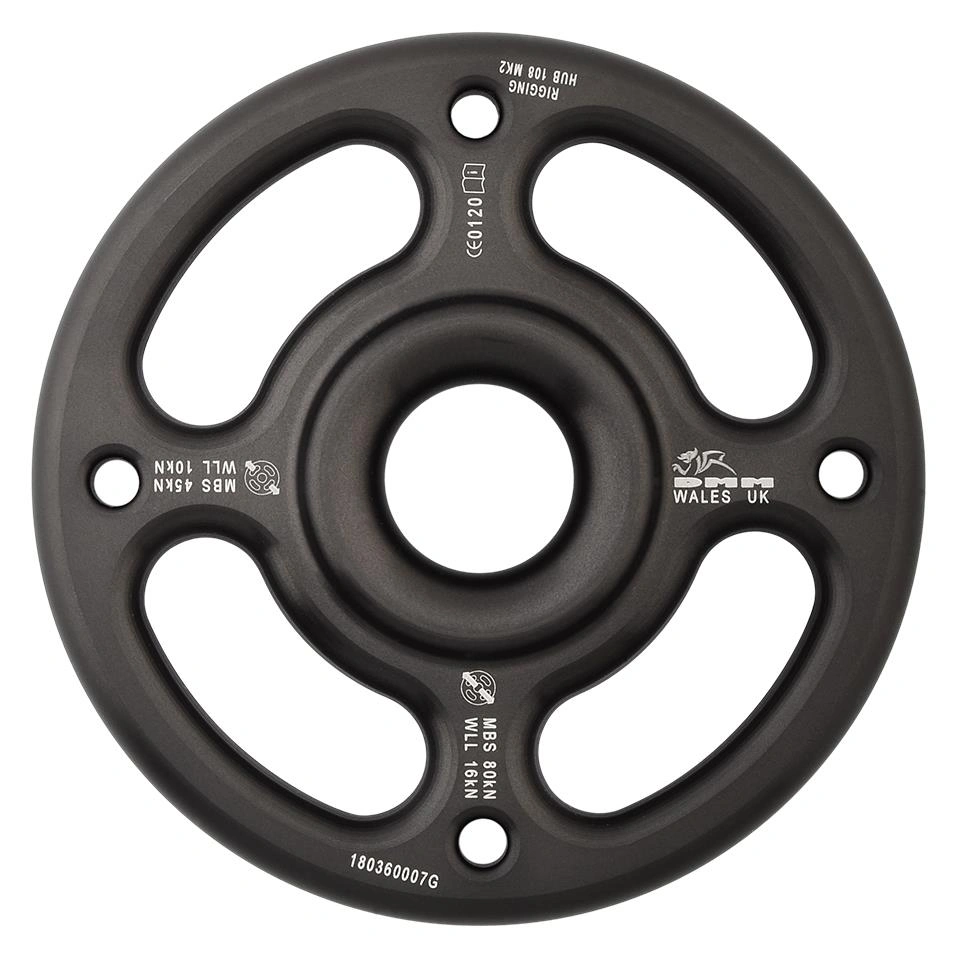

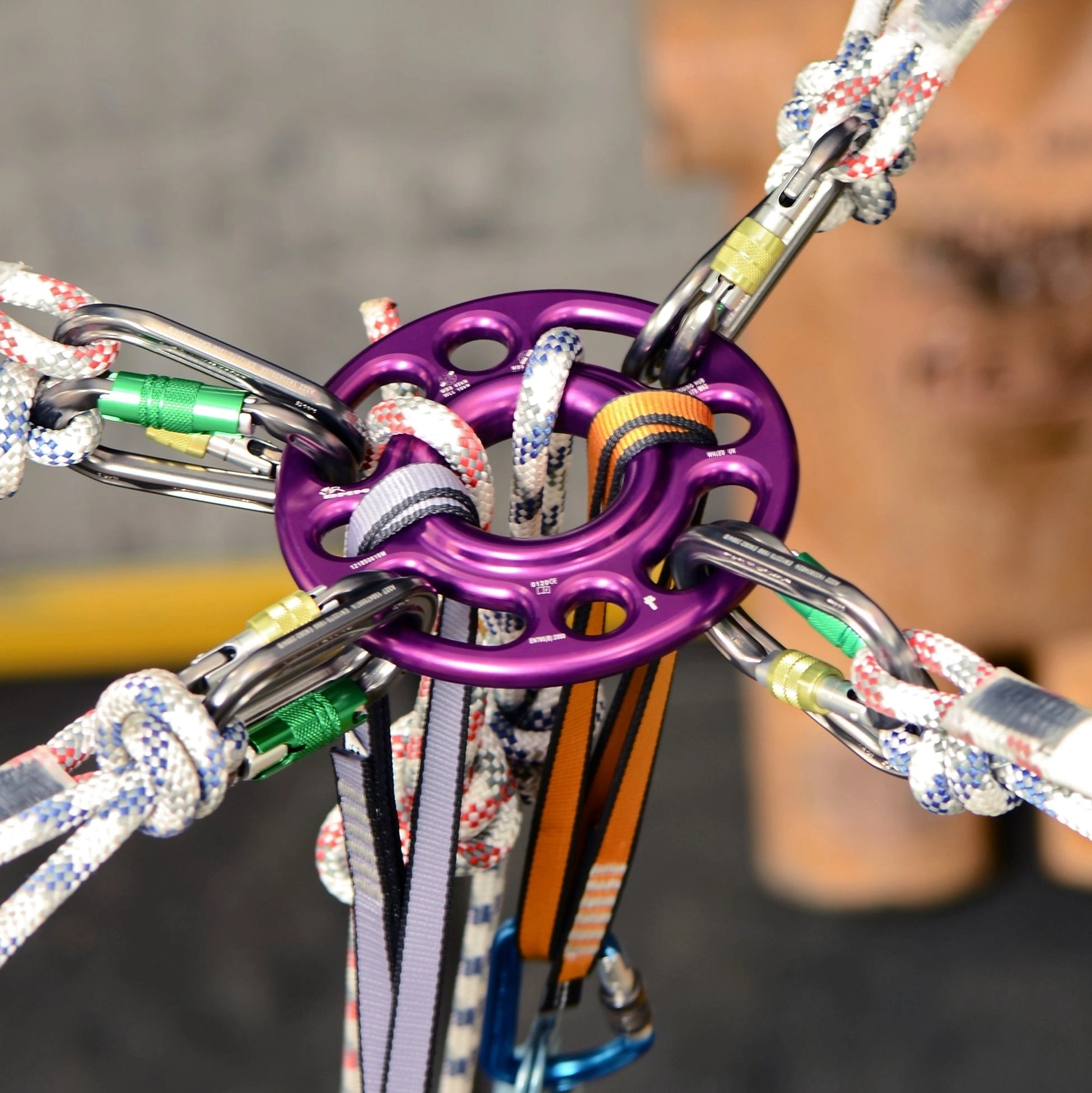

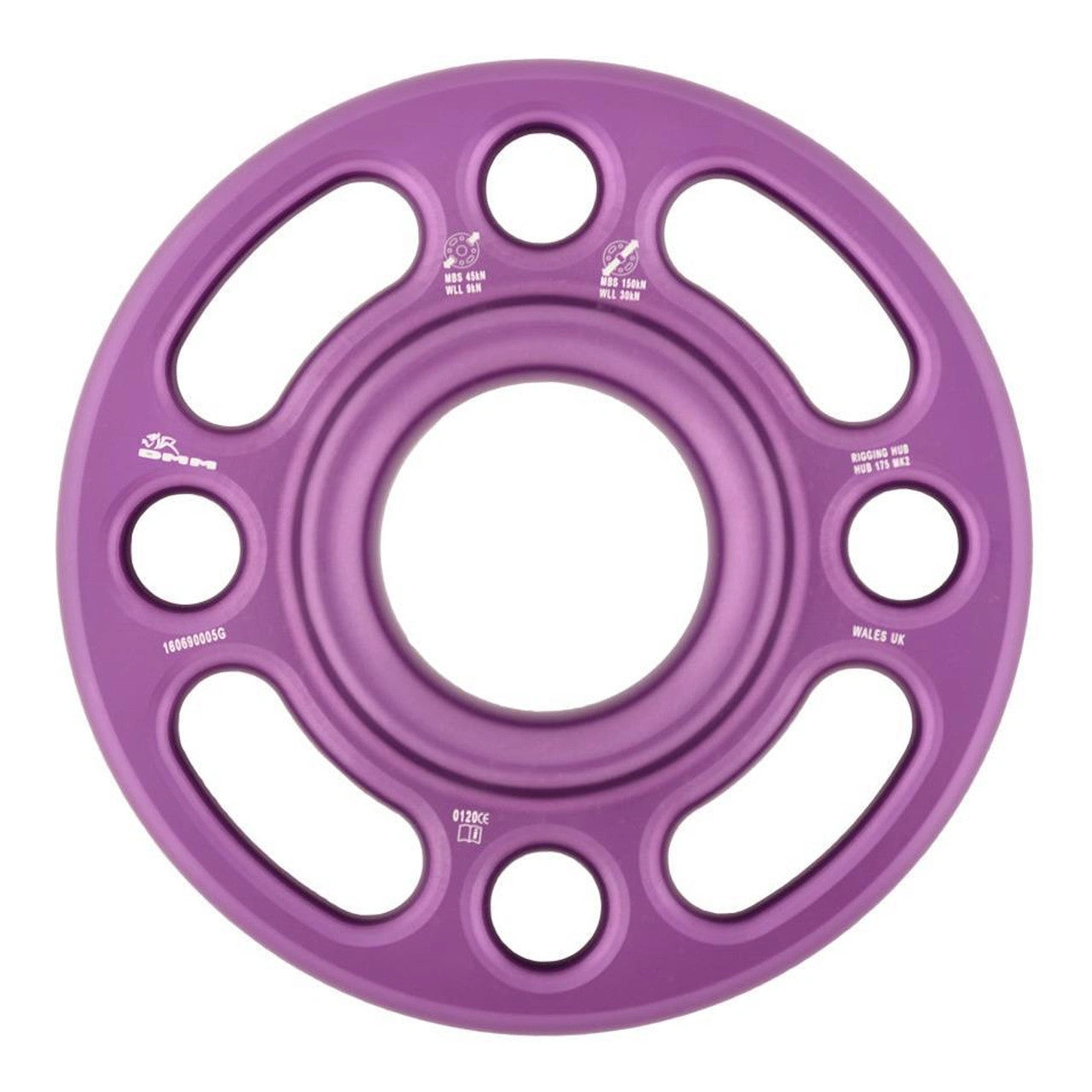

Complex 3D rigging focused onto a single anchor. The DMM rigging hub can be used to form a super strong centralised anchor point for use in treework, rope access and rescue. Radiused surfaces throughout allow direct rope or textile attachment - this includes running ropes, girth hitched slings, tied in prussiks, etc. Use of multiple 3D anchors often allow the hubs to be used as a lightweight alternative to a tripod for edge management or targeted lifting points e.g over a manhole or cave entrance. Certified to DMM's in-house Linking Components standard.

Features

• Textile Friendly Connection Points Suitable For Rope, Webbing And Opposed Connectors
• Central Hole Can Accommodate A Running Rope And Facilitates 3D Rigging
• CNC Machined From Top Grade Alloy For Strength, Durability And Lightness
• Recommended For Rescue And Rigging Applications

Specifications

• Weight: [Small] 260 g, [Large] 550 g
• MBS: [Small] 80/45kN, [Large] 150/45kN
• WLL: [Small] 16/9kN, [Large] 30/9kN
• Dimensions: [Small] 119 mm, [Large] 169 mm
• Certification: RFU 11.114 V1
